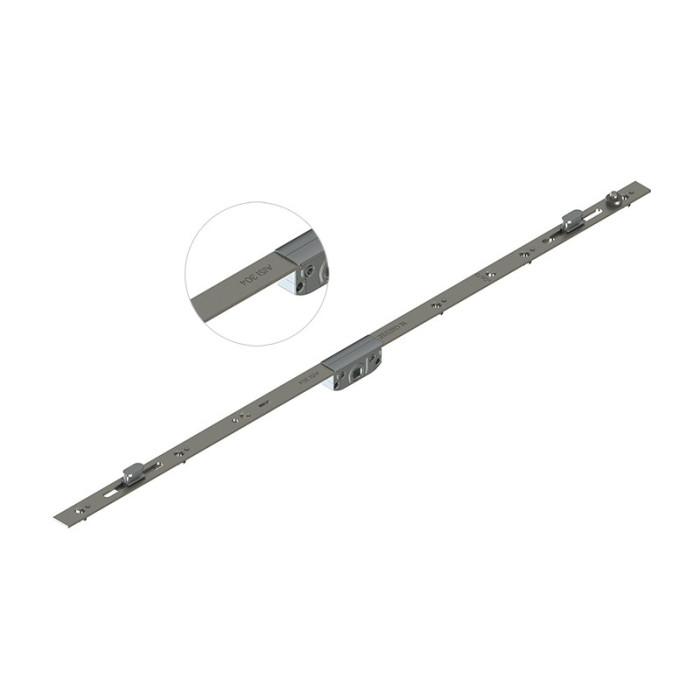

STAINLESS STEEL CHAMPION PLUS CLOSING RODS

Technical Characteristics

Three versions are available:
• Backset 7.5 mm (1 to 3 locking points)
• Backset 15 mm (1 to 3 locking points)
• Backset 15 mm with lock (3 locking points)
All the rods are operated by traditional window handles or recess handles equipped with a 7 mm square pin.
These multi-locks have 2 operating positions:
1) 0° CLOSED SASH
2) 90° OPEN SASH
Depending on the series used, the rods have to be matched with specific cou-pling kits designed to adapt them to the various shapes of the profile.
The strength of the mushroom nib is greater than 150 kg.
The Champion Plus fastening rods with 2 and 3 locking points are compatible with the incorrect movement safety device art. 02770, which prevents the win-dow handle from returning to the closed position with the sash open.
