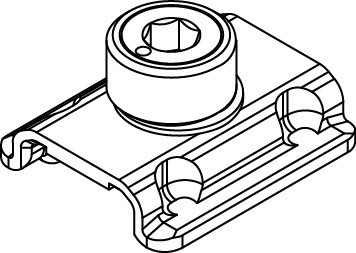

ADJUSTABLE PAWL 009
Code: 01395
Technical specification
| 3° fastening mechanism | No |
| Cross-section type | C001-C002-C003-C004-C005-C006-C011-C012-C013-C014-C015-C016-C017-P001-P002-P003-P004-P005-P006-P007-P008-P009-P010 |
| Adjustment (mm) | +/- 0, 75 |
| Discharged terminal | No |
| Offset terminal | No |
| B (mm) | 11.5 |
| Bolt | No |
| C (mm) | 10, 3 |
| Compatible with Brio Big nib | No |
| Compatible with Brio Small nib | No |
| Compatible with Brio Zamak nib | No |
| D (mm) | 19, 5 |
| E (mm) | 22, 5 |
| F (mm) | 11, 5 |
| Fastening mechanism with Adjustable terminals | No |
| Fastening mechanism with Giap terminals | No |
| Fastening mechanism with pawls | No |
| Incorrect Movement Safety Device Compatibility | No |
| Key | No |
| Lock | No |
| Perimetral Closing | No |
| Symmetric | No |
| A (mm) | 5.5 |
