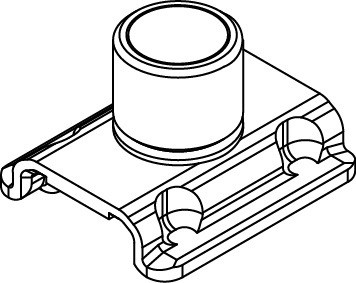

FIXED PAWL FOR WORKING ROD 009

Code: 04054

€100.00
In stock
Product code
04054
  • Brand

    Giesse

  • Product

    Fasteners

  • Product Class

    STRIKERS AND FASTENING MECHANISMS

  • Family product

    PAWLS 009

  • Opening

    Doors

  • Application Material

    Aluminium

  • Pieces/meters per pack

    100

  • Colours/Finishes

    Neutral/Stainless steel/Nylon

Quote guide

Technical specification

3° fastening mechanismNo
Cross-section type-
Adjustment (mm)No
Discharged terminalNo
Offset terminalNo
B (mm)14
BoltNo
C (mm)10, 3
Compatible with Brio Big nibNo
Compatible with Brio Small nibNo
Compatible with Brio Zamak nibNo
D (mm)19, 5
E (mm)22, 5
F (mm)16, 5/17
Fastening mechanism with Adjustable terminalsNo
Fastening mechanism with Giap terminalsNo
Fastening mechanism with pawlsNo
Incorrect Movement Safety Device CompatibilityNo
KeyNo
LockNo
Perimetral ClosingNo
SymmetricNo
A (mm)8
